What is PfBlockerNG?

pfBlockerNG is an excellent Free and Open Source package developed for pfSense® software that provides advertisement blocking and malicious content blocking, as well as geo-blocking capabilities.

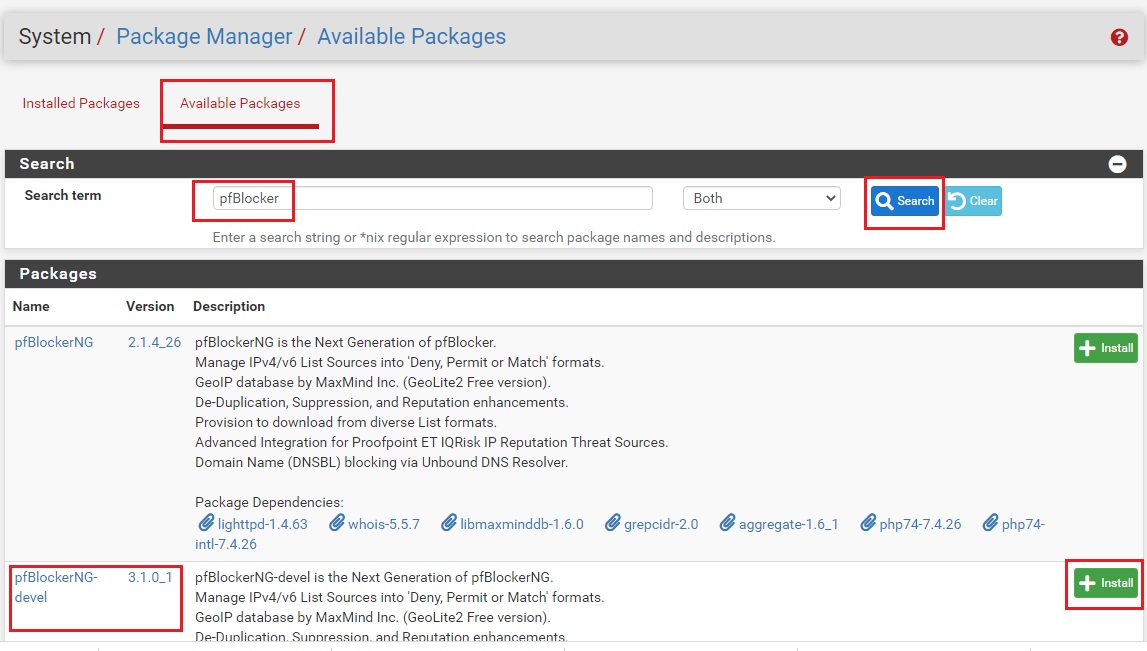

1. Go to System -> Package Manager -> Available Packages menu

  • Search for pfBlockerNG package
  • We are going to install pfBlockerNG 3.x package
  • Click Install to install the package

pfsense package

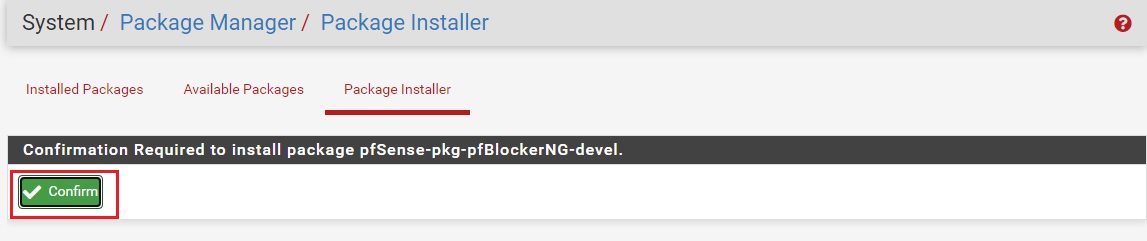

Confirm to install pfsense package

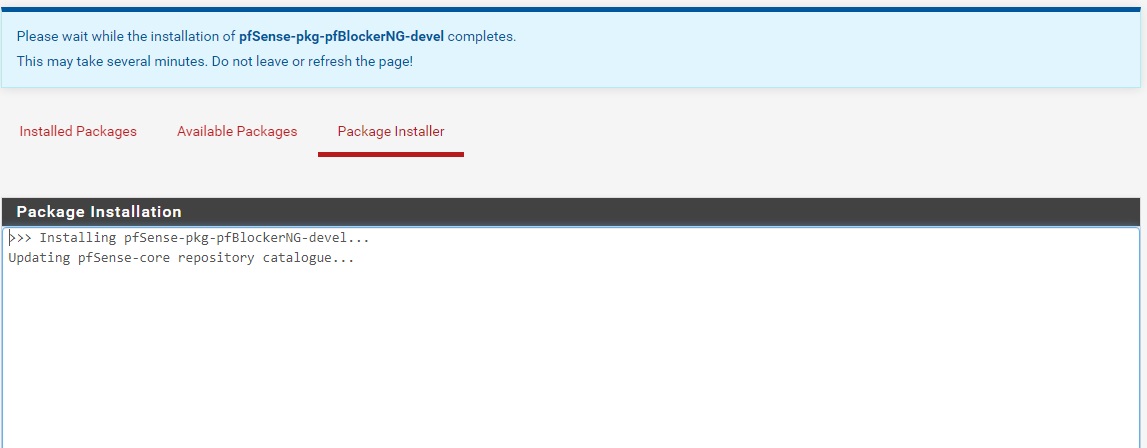

pfsense package

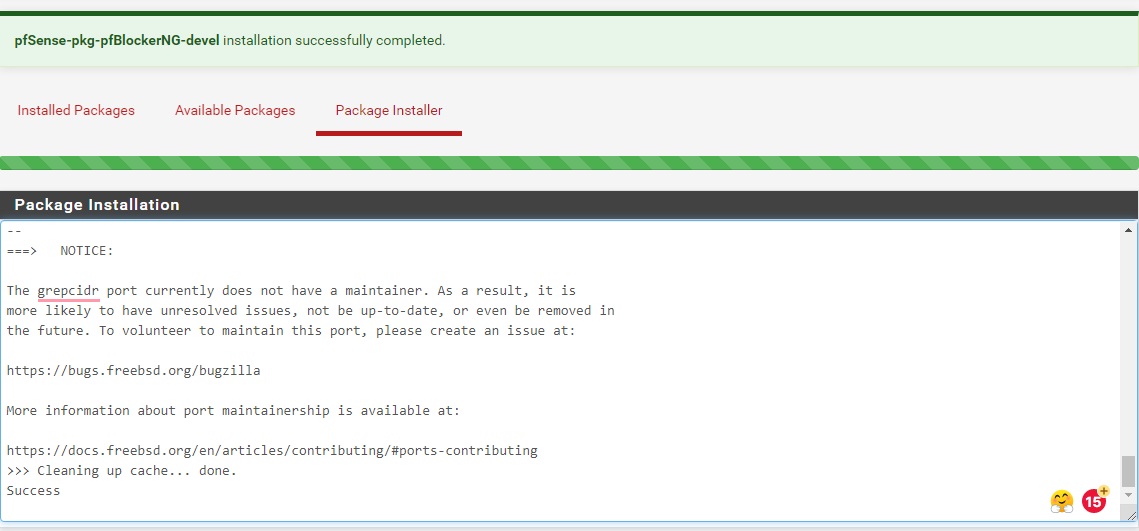

Setup complete pfsense package

Now are going to configure it.

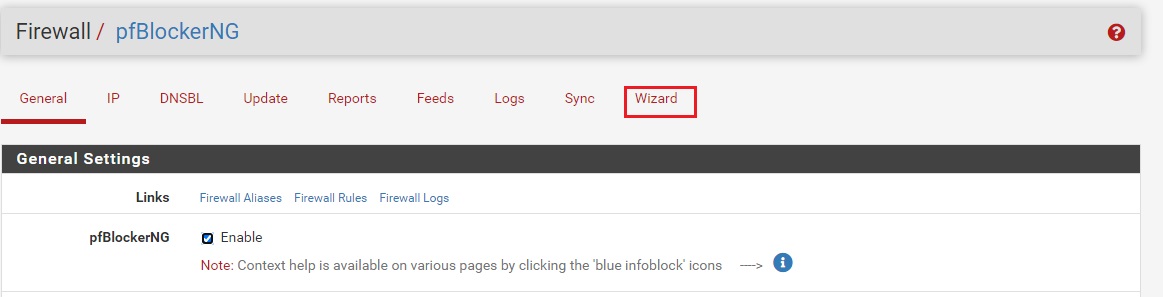

2. Go to Firewall -> pfBlockerNG

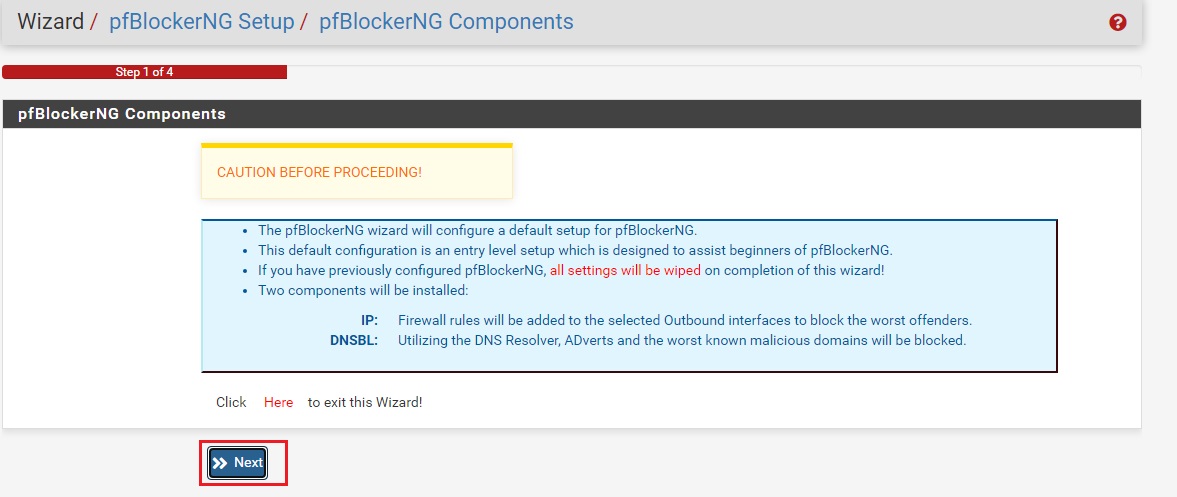

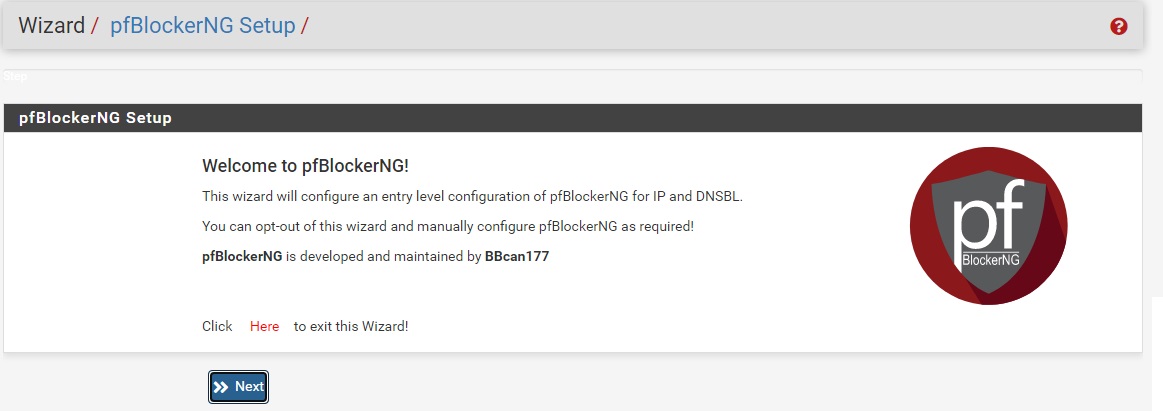

Click Wizard to start configuring pfBlockerNG pfsense package

pfsense package

pfsense package

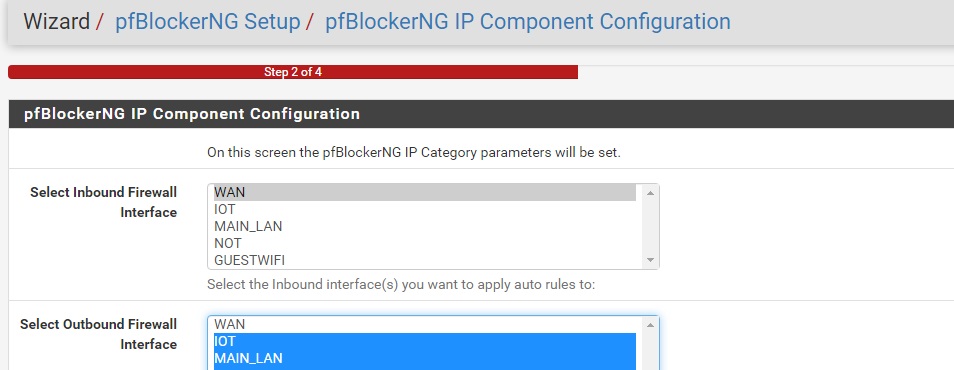

Inbound is WAN/Internet and Outbound are LAN/VLANs

pfsense package

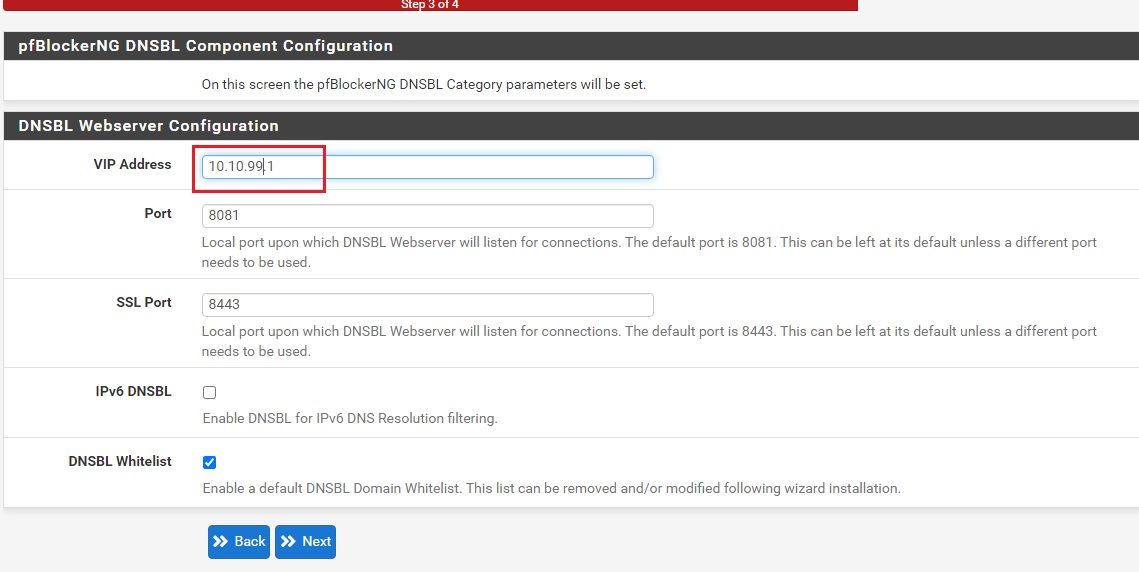

I change VIP Address to 10.10.99.1 as default (10.10.10.1) conflict with my VLAN pfsense package

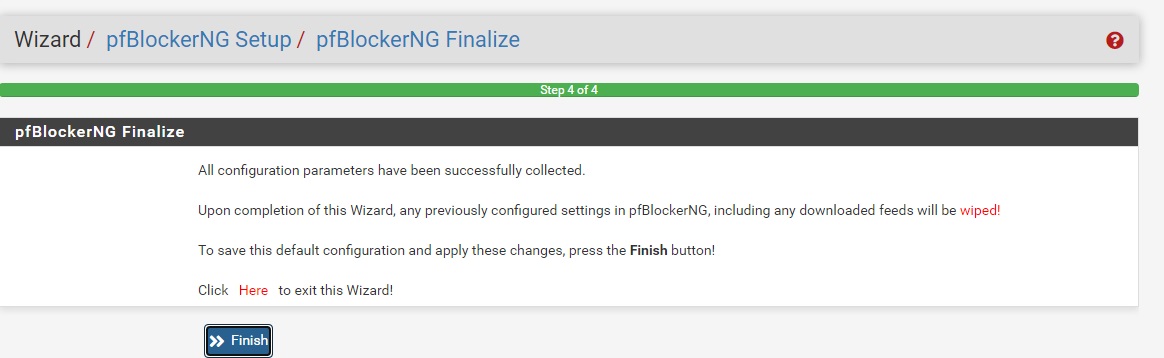

pfsense package

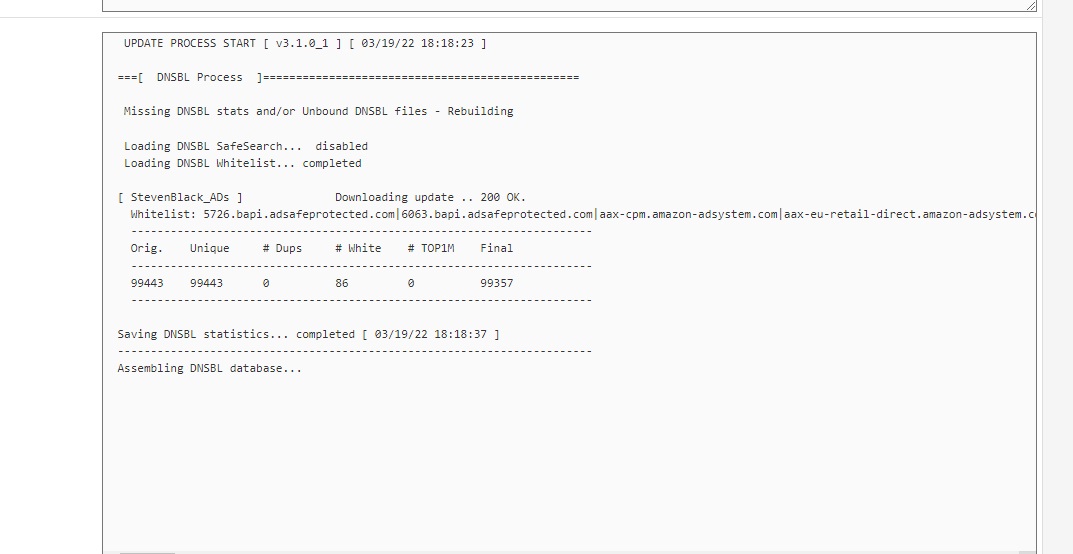

It is successfully install, and it run cron job to fetch rules to block pfsense package
