ASP.NET 6 Scheduling with Quartz.NET and Signalr Monitoring

Last modified: March 20, 2022

< JQuery Datatable in ASP.NET Core - Server-Side Processing

In this article, we are going to use Quartz.NET to schedule our jobs and make use of Signalr to view monitoring the result/progress.

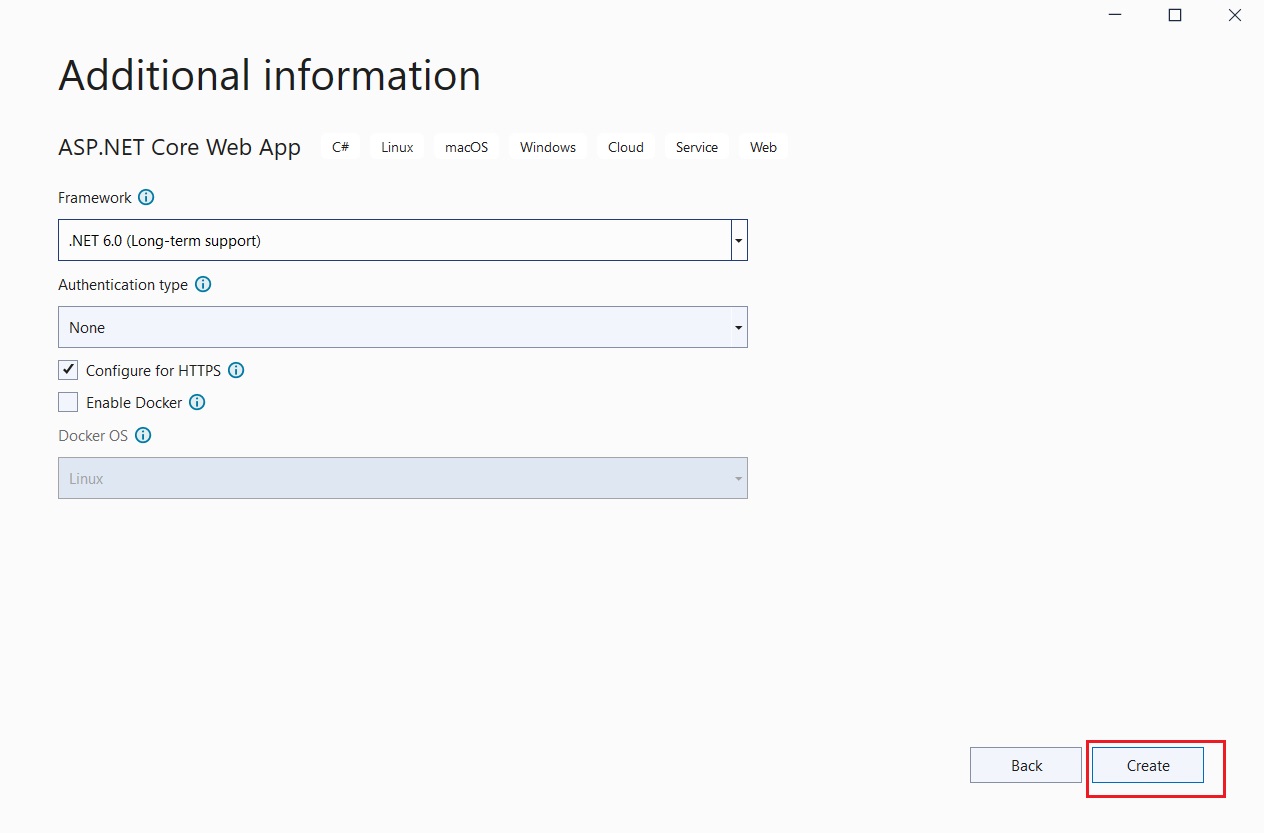

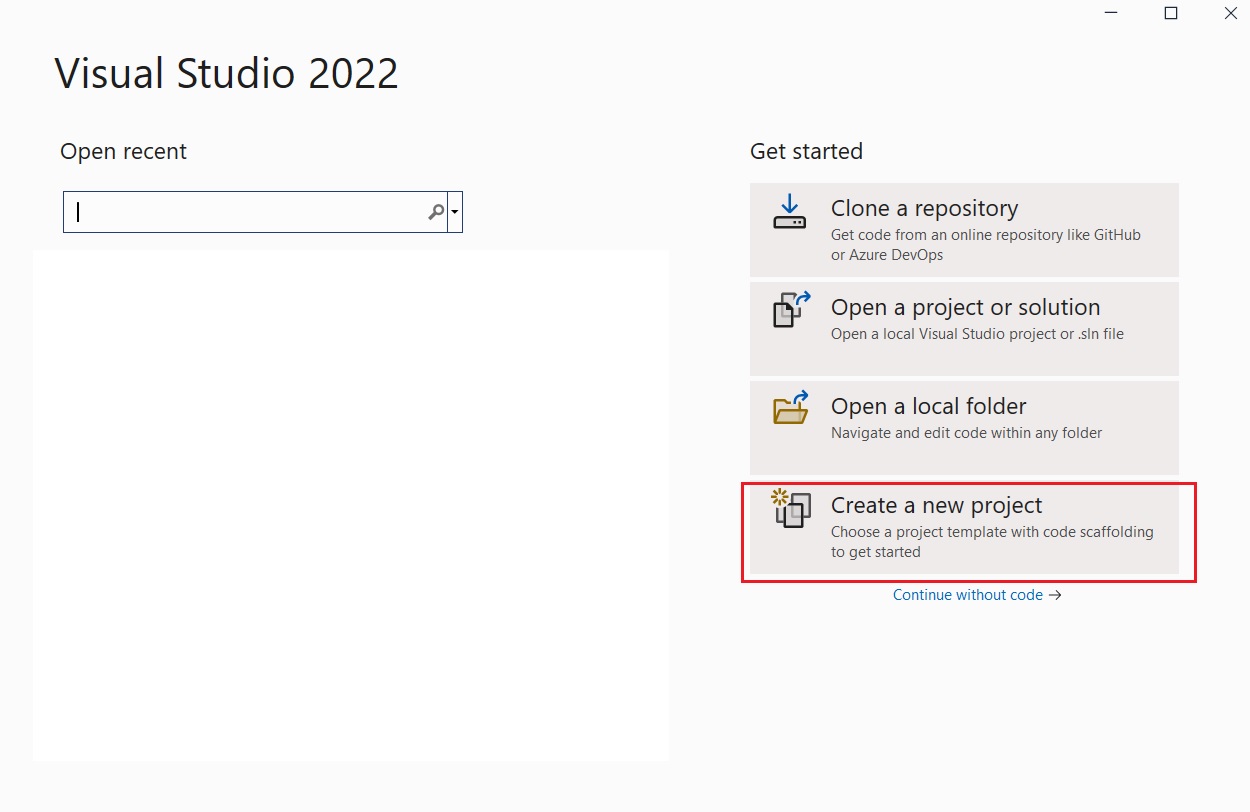

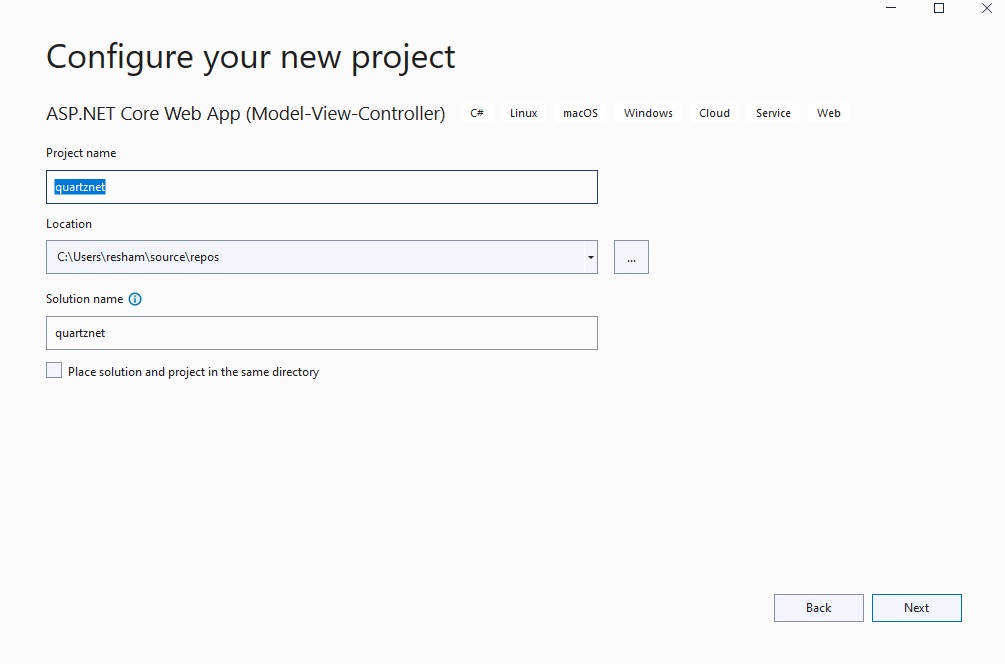

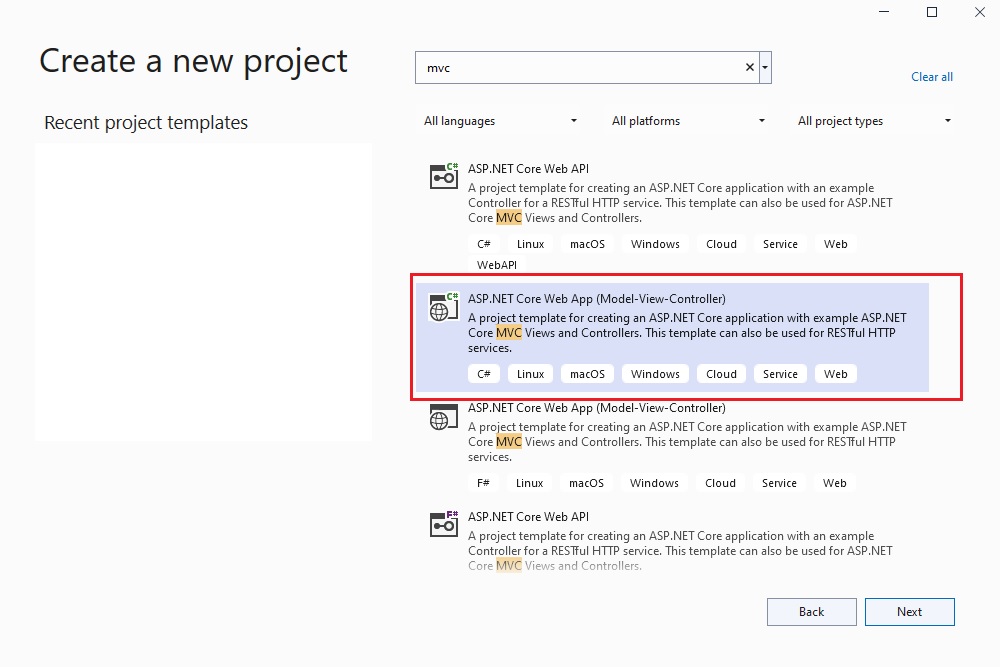

1. Create Project

Create an ASP.NET MVC application.

createproject

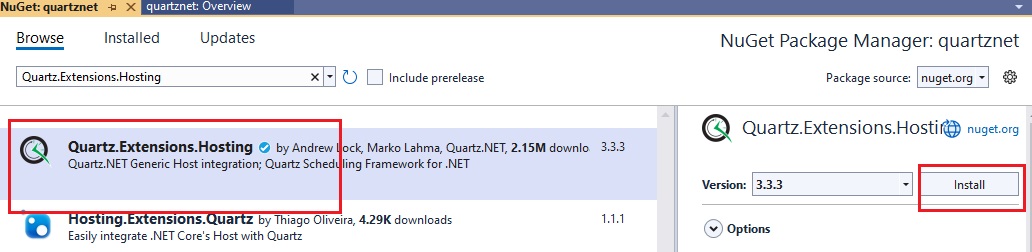

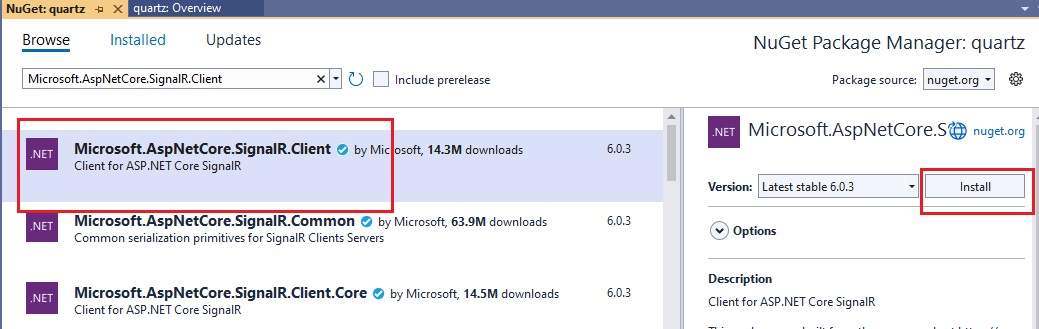

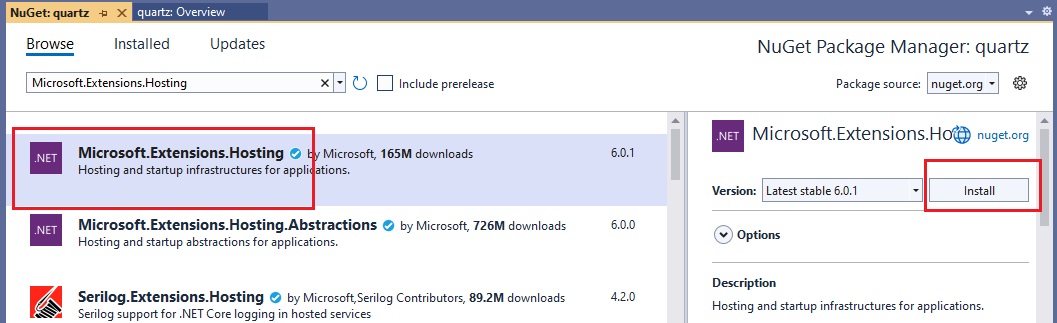

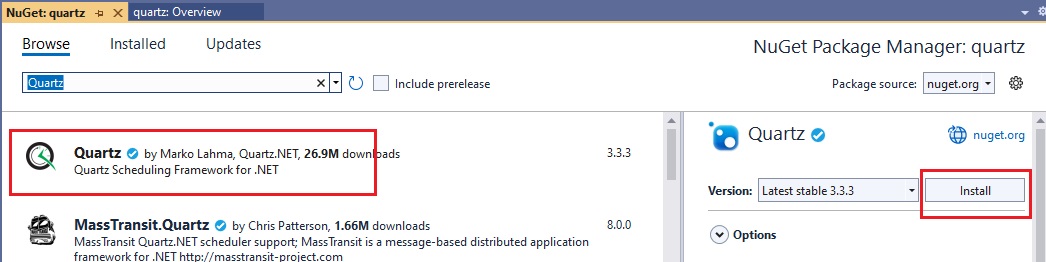

2. Install NuGet Package

Microsoft.AspNetCore.SignalR.Client
Microsoft.Extensions.Hosting
Quartz
Quartz.Extensions.Hosting

NuGet

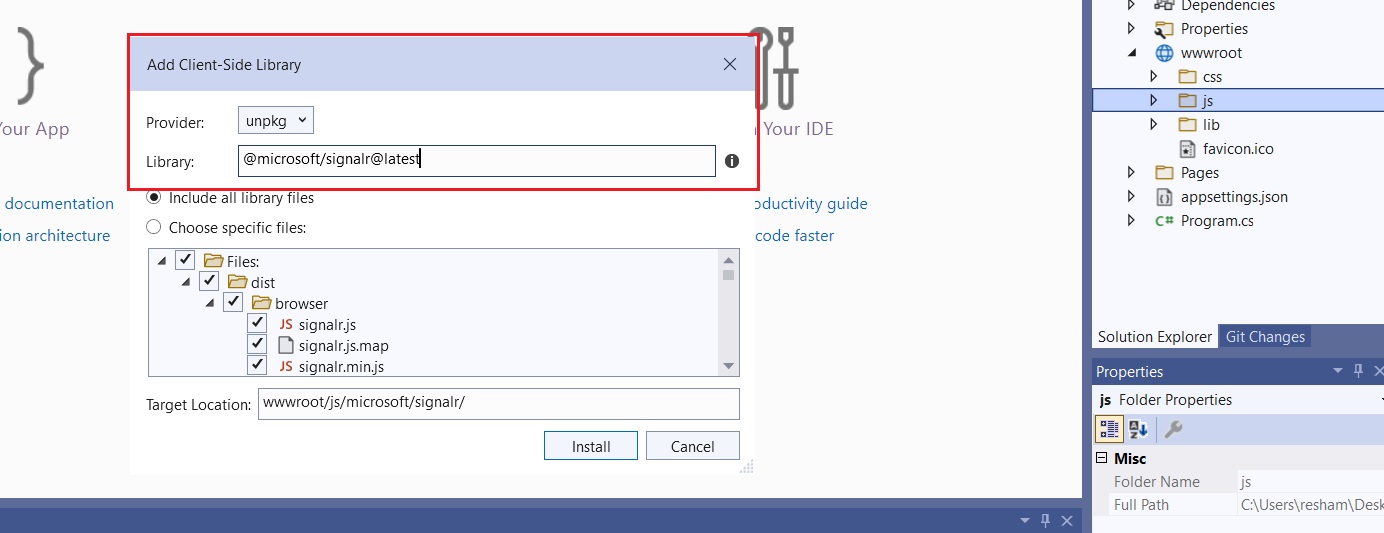

3. Install SignalR client library

@microsoft/Signalr@latest

client

4. Create SignalR js file

create a hub.js file and save to wwwroot->js folder

const connection = new signalR.HubConnectionBuilder().withUrl("/hub").build();

async function start() {
    try {
        await connection.start();
        console.log("SignalR Connected.");
    } catch (err) {
        console.log(err);
        setTimeout(start, 5000);
    }
};

connection.onclose(async () => {
    await start();
});

start();

connection.on("ConcurrentJobs", function (message) {
    var li = document.createElement("li");
    document.getElementById("concurrentJobs").appendChild(li);
    li.textContent = `${message}`;
});

connection.on("NonConcurrentJobs", function (message) {
    var li = document.createElement("li");
    document.getElementById("nonConcurrentJobs").appendChild(li);
    li.textContent = `${message}`;
});

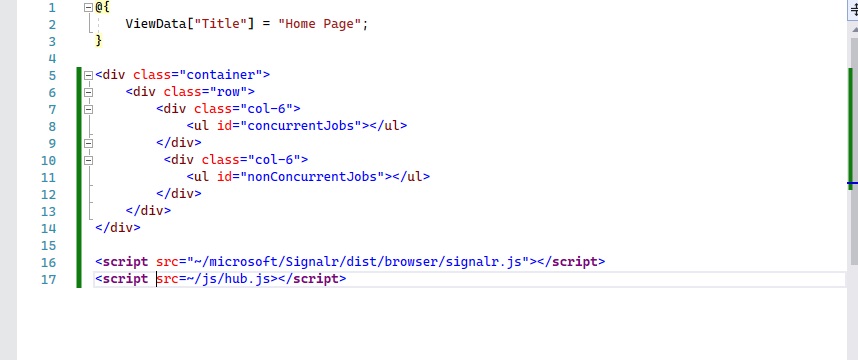

5. HTML to display message

In the Index.cshtml, add below code to display messsage from SignalR

<div class="container">
    <div class="row">
        <div class="col-6">
            <ul id="concurrentJobs"></ul>
        </div>
         <div class="col-6">
            <ul id="nonConcurrentJobs"></ul>
        </div>
    </div>
</div>

<script src="~/microsoft/Signalr/dist/browser/signalr.js"></script>
<script src=~/js/hub.js></script>

NuGet

7. Job Hub

Create a cs class file name JobsHub and replace with below code

public class JobsHub : Hub
{
    //message used for concurrent job message
    public Task SendConcurrentJobsMessage(string message)
    {
        return Clients.All.SendAsync("ConcurrentJobs", message);
    }

    //message used for nonconcurrent job message
    public Task SendNonConcurrentJobsMessage(string message)
    {
        return Clients.All.SendAsync("NonConcurrentJobs", message);
    }

}

8. Create Jobs

ConconcurrentJob

Create a cs class file named ConconcurrentJob and replace with below code.

public class ConconcurrentJob : IJob
{
    private static int _counter = 0;
    private readonly IHubContext<JobsHub> _hubContext;

    public ConconcurrentJob(IHubContext<JobsHub> hubContext)
    {
        _hubContext = hubContext;
    }

    public async Task Execute(IJobExecutionContext context)
    {
        var count = _counter++;

        //start the job
        var beginMessage = $"Conconcurrent Job BEGIN {count} {DateTime.UtcNow}";
        await _hubContext.Clients.All.SendAsync("ConcurrentJobs", beginMessage);

        //we have long running job
        Thread.Sleep(5000);

        //complete the job
        var endMessage = $"Conconcurrent Job END {count} {DateTime.UtcNow}";
        await _hubContext.Clients.All.SendAsync("ConcurrentJobs", endMessage);
    }
}

Create a cs class file named NonConconcurrentJob and replace with below code.

public class ConconcurrentJob : IJob
{
    private static int _counter = 0;
    private readonly IHubContext<JobsHub> _hubContext;

    public ConconcurrentJob(IHubContext<JobsHub> hubContext)
    {
        _hubContext = hubContext;
    }

    public async Task Execute(IJobExecutionContext context)
    {
        var count = _counter++;

        //start the job
        var beginMessage = $"Conconcurrent Job BEGIN {count} {DateTime.UtcNow}";
        await _hubContext.Clients.All.SendAsync("nonConcurrentJobs", beginMessage);

        //we have long running job
        Thread.Sleep(5000);

        //complete the job
        var endMessage = $"Conconcurrent Job END {count} {DateTime.UtcNow}";
        await _hubContext.Clients.All.SendAsync("nonConcurrentJobs", endMessage);
    }
}

9. Program.cs

Add below code to Program.cs

builder.Services.AddQuartz(q =>
{
    q.UseMicrosoftDependencyInjectionJobFactory();

    var conconcurrentJobKey = new JobKey("ConconcurrentJob");
    q.AddJob<ConconcurrentJob>(opts => opts.WithIdentity(conconcurrentJobKey));
    q.AddTrigger(opts => opts
        .ForJob(conconcurrentJobKey)
        .WithIdentity("ConconcurrentJob-trigger")
        .WithSimpleSchedule(x => x
            .WithIntervalInSeconds(5)
            .RepeatForever()));

    var nonConconcurrentJobKey = new JobKey("NonConconcurrentJob");
    q.AddJob<NonConconcurrentJob>(opts => opts.WithIdentity(nonConconcurrentJobKey));
    q.AddTrigger(opts => opts
        .ForJob(nonConconcurrentJobKey)
        .WithIdentity("NonConconcurrentJob-trigger")
        .WithSimpleSchedule(x => x
            .WithIntervalInSeconds(5)
            .RepeatForever()));

});

builder.Services.AddQuartzHostedService(
    q => q.WaitForJobsToComplete = true);

builder.Services.AddSignalR();

app.UseEndpoints(endpoints =>
{
    endpoints.MapHub<JobsHub>("/hub");
});

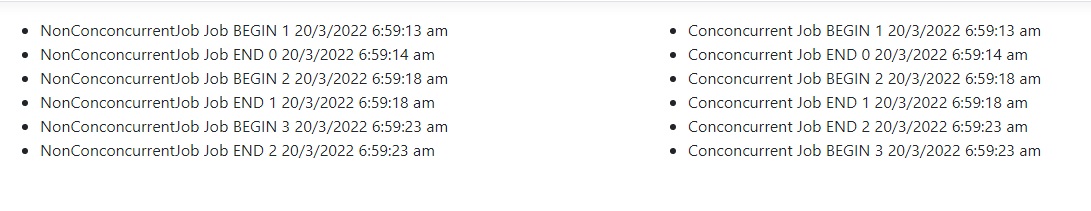

10. Test

test
