Dapper In ASP.NET 6 With Repository Pattern

Last modified: April 14, 2022

< gRPC Authenticate and Authorize (Server & Client)

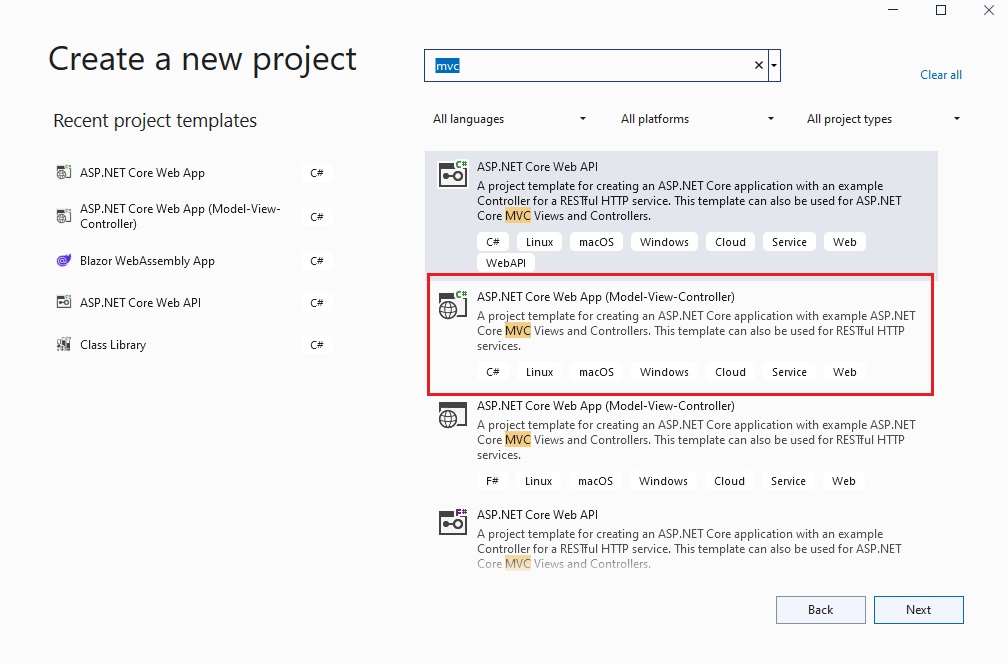

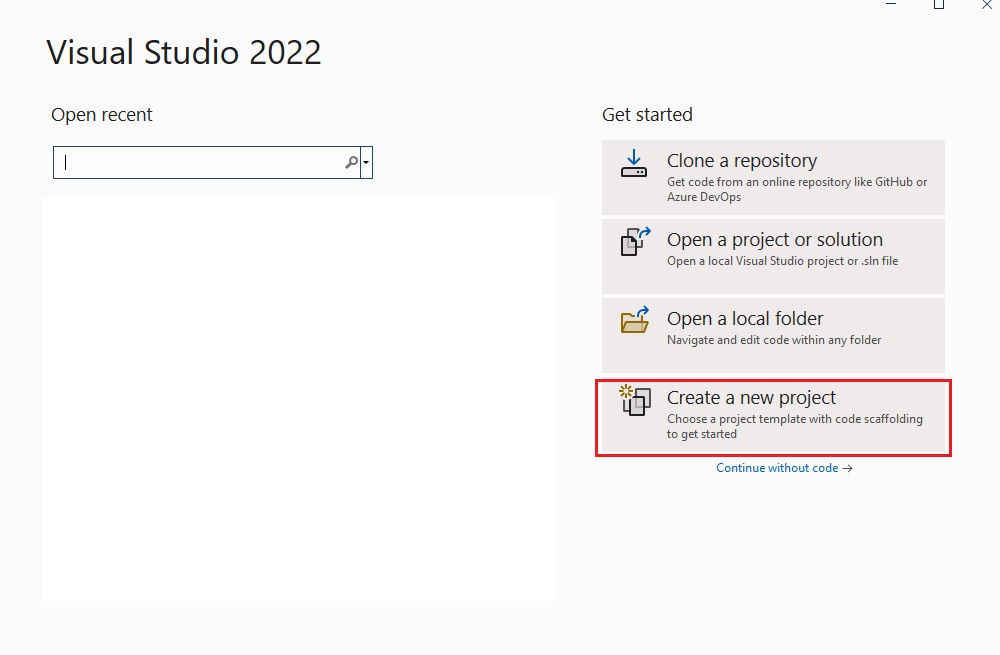

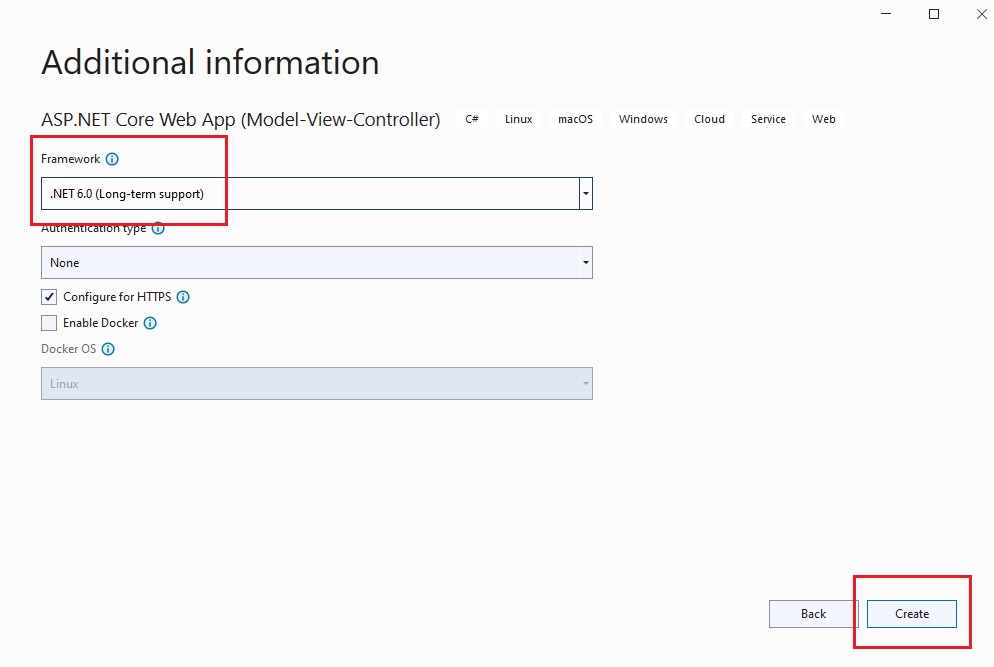

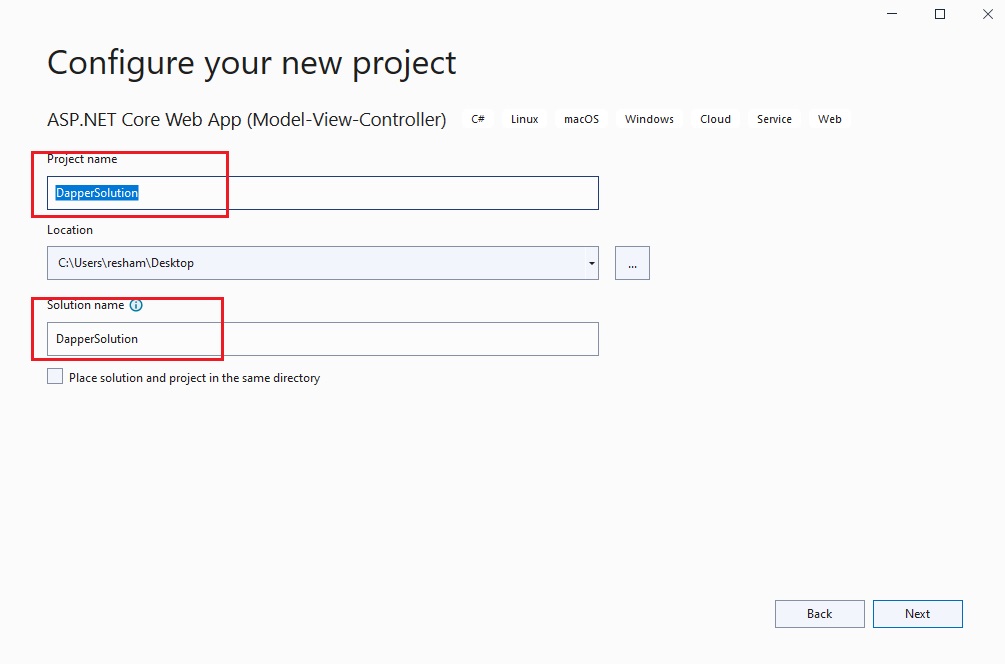

Step 1 Create a MVC Application

project

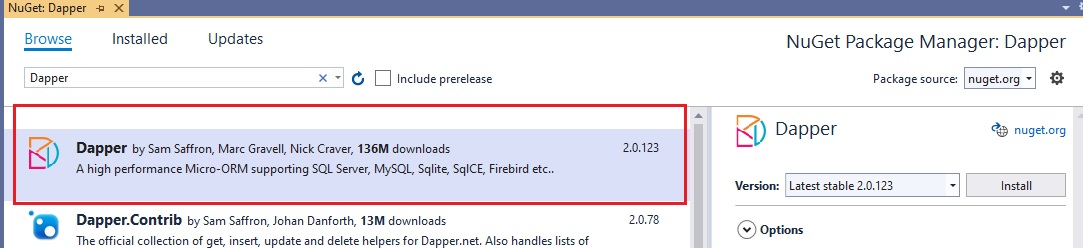

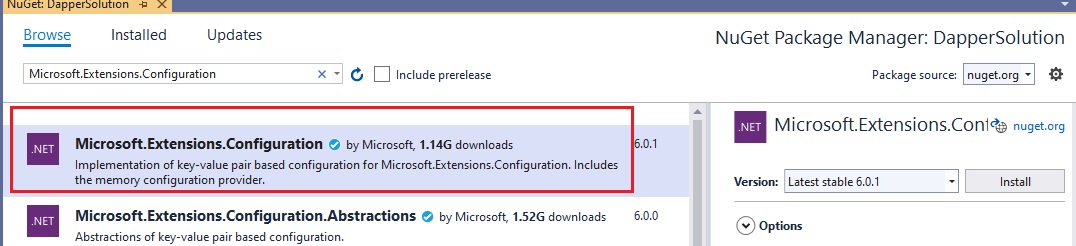

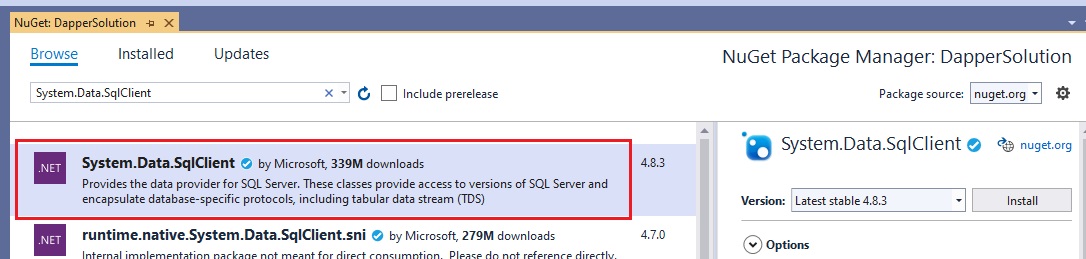

Step 2 Install NuGet Packages

  <ItemGroup>
    <PackageReference Include="Dapper" Version="2.0.123" />
    <PackageReference Include="Microsoft.Extensions.Configuration" Version="6.0.1" />
    <PackageReference Include="Microsoft.Extensions.Configuration.Abstractions" Version="6.0.0" />
    <PackageReference Include="System.Data.SqlClient" Version="4.8.3" />
  </ItemGroup>

nuget

3. Create a Database and Table

Open SQL Server Managment Studio and run the below SQL Script to create a database, table and insert sample records

CREATE DATABASE Dapper

GO
CREATE TABLE [Dapper].[dbo].[Product](
	[Id] [int] IDENTITY(1,1) NOT NULL,
	[Sku] [nvarchar](50) NOT NULL,
	[Name] [nvarchar](200) NOT NULL,
	[Manufacturer] [nvarchar](200) NOT NULL,
	[Price] [decimal](9, 2) NOT NULL,
 CONSTRAINT [PK_Product] PRIMARY KEY CLUSTERED
(
	[Id] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON, OPTIMIZE_FOR_SEQUENTIAL_KEY = OFF) ON [PRIMARY]
) ON [PRIMARY]
GO

INSERT INTO [Dapper].[dbo].[Product] (Sku,[Name], Manufacturer, Price)
VALUES
('iphone12', 'iPhone 12', 'Apple', 800),
('iphone12pro', 'iPhone 12 Pro', 'Apple', 900),
('iphone13', 'iPhone 13', 'Apple', 1000),
('iphone12pro', 'iPhone 12 Pro', 'Apple', 1100)

4. Architecture

Core => Interfaces and Domain Models
Infrastructure => Implementations of Repository and other interface
Web => User Interface

We usually create different projects for above layers but for demo and simplity, we will just create separate folders.

Create a folder named Core
- Create a folder named Entities on Core foder
- Create a folder name Interfaces on Core folder
Create a folder named Infrastructure
- Create a folder named Repository on Infrastructure folder

Entities

Product

public class Product
{
    public int Id { get; set; }
    public string Sku { get; set; }
    public string Name { get; set; }
    public string Manufacturer { get; set; }
    public decimal Price { get; set; }
}

Interfaces

IGenericRepository

public interface IGenericRepository<T> where T : class
{
    Task<T?> GetById(int id);
    Task<IEnumerable<T>> GetAll();
    Task<bool> Add(T entity);
    Task<bool> Remove(int id);
    Task<bool> Update(T entity);
}

IProductRepository

public interface IProductRepository : IGenericRepository<Product>
{
}

IUnitOfWork

public interface IUnitOfWork
{
    IProductRepository Products { get; }
}

Repository

ProductRepository

We use Dapper instead of Entity Framework core

public class ProductRepository : IProductRepository
{
    private readonly IConfiguration _configuration;

    public ProductRepository(IConfiguration configuration)
    {
        _configuration = configuration;
    }

    public async Task<bool> Add(Product entity)
    {
        var sql = "INSERT INTO [dbo].[Product] ([Sku], [Name], [Manufacturer],[Price]) VALUES (@Sku, @Name, @Manufacturer, @Price)";

        using (var connection = new SqlConnection(_configuration.GetConnectionString("DefaultConnection")))
        {
            connection.Open();
            var result = await connection.ExecuteAsync(sql, entity);
            return true;
        }

    }

    public async Task<IEnumerable<Product>> GetAll()
    {
        var sql = "SELECT * FROM Product";
        using (var connection = new SqlConnection(_configuration.GetConnectionString("DefaultConnection")))
        {
            connection.Open();
            var result = await connection.QueryAsync<Product>(sql);
            return result.ToList();
        }
    }

    public async Task<Product?> GetById(int id)
    {
        var sql = "SELECT * FROM Product WHERE Id = @Id";
        using (var connection = new SqlConnection(_configuration.GetConnectionString("DefaultConnection")))
        {
            connection.Open();
            var result = await connection.QuerySingleOrDefaultAsync<Product>(sql, new { Id = id });
            return result;
        }
    }

    public async Task<bool> Remove(int id)
    {
        var sql = "DELETE FROM Products WHERE Id = @Id";
        using (var connection = new SqlConnection(_configuration.GetConnectionString("DefaultConnection")))
        {
            connection.Open();
            var result = await connection.ExecuteAsync(sql, new { Id = id });
            return true;
        }
    }

    public async Task<bool> Update(Product entity)
    {
        var sql = "UPDATE Product SET Sku = @Sku, Name = @Name, Manufacturer = @Manufacturer, Price = @Price WHERE Id = @Id";

        using (var connection = new SqlConnection(_configuration.GetConnectionString("DefaultConnection")))
        {
            connection.Open();
            await connection.ExecuteAsync(sql, entity);
            return true;
        }
    }
}

UnitOfWork

public class UnitOfWork : IUnitOfWork
{
    public UnitOfWork(IProductRepository productRepository)
    {
        Products = productRepository;
    }
    public IProductRepository Products { get; }
}

5. appsettings.json

Configure the database connection string

"ConnectionStrings": {
    "DefaultConnection": "Data Source=.;Initial Catalog=Dapper;Integrated Security=True;MultipleActiveResultSets=True"
  },

6. Controller.

Create a controller ProductController with the values before. We are going to use AJAX to perform whole CRUD (Create, Read, Update & Delete) methods.

public class ProductController : Controller
{
    // GET: ProductController

    private readonly IUnitOfWork _unitOfWork;

    public ProductController(IUnitOfWork unitOfWork)
    {
        _unitOfWork = unitOfWork;
    }

    public IActionResult Index()
    {
        return View();
    }

    public async Task<JsonResult> GetProduct()
    {
        var products = await _unitOfWork.Products.GetAll();
        return Json(products);
    }

    // GET: ProductController/Details/5
    public async Task<JsonResult> DetailsAsync(int id)
    {
        var product = await _unitOfWork.Products.GetById(id);
        return Json(product);
    }

    // POST: ProductController/Create
    [HttpPost]
    [ValidateAntiForgeryToken]
    public async Task<JsonResult> Create(Product product)
    {
        bool add = await _unitOfWork.Products.Add(product);
        return Json(add);
    }

    // POST: ProductController/Edit/5
    [HttpPost]
    [ValidateAntiForgeryToken]
    public async Task<JsonResult> Edit(int id, Product product)
    {
        var p = await _unitOfWork.Products.GetById(id);

        if(p == null)
            return Json(NotFound());

        bool update = await _unitOfWork.Products.Update(product);

        return Json(update);
    }

    // POST: ProductController/Delete/5
    [HttpPost]
    [ValidateAntiForgeryToken]
    public async Task<ActionResult> DeleteAsync(int id)
    {
        var p = await _unitOfWork.Products.GetById(id);

        if (p == null)
            return Json(NotFound());

        bool delete = await _unitOfWork.Products.Remove(id);

        return Json(delete);
    }
}

7. Program.cs

Add two DIs(dependency injection)

builder.Services.AddTransient<IProductRepository, ProductRepository>();
builder.Services.AddTransient<IUnitOfWork, UnitOfWork>();

8. View

Replace or add following JavaScripts on _Layout Page

<script src="https://cdnjs.cloudflare.com/ajax/libs/jquery/3.6.0/jquery.min.js" integrity="sha512-894YE6QWD5I59HgZOGReFYm4dnWc1Qt5NtvYSaNcOP+u1T9qYdvdihz0PPSiiqn/+/3e7Jo4EaG7TubfWGUrMQ==" crossorigin="anonymous" referrerpolicy="no-referrer"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.12.3/umd/popper.min.js" integrity="sha384-vFJXuSJphROIrBnz7yo7oB41mKfc8JzQZiCq4NCceLEaO4IHwicKwpJf9c9IpFgh" crossorigin="anonymous"></script>
<script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0-beta.2/js/bootstrap.min.js" integrity="sha384-alpBpkh1PFOepccYVYDB4do5UnbKysX5WZXm3XxPqe5iKTfUKjNkCk9SaVuEZflJ" crossorigin="anonymous"></script>

view

We need AntiForgeryToken for validation

@Html.AntiForgeryToken()

Add a Product Modal (Pop up)

<button type="button" class="btn btn-primary" data-toggle="modal" data-target="#ProductModel">
  Add Product
</button>

<!-- Modal -->
<div class="modal fade" id="ProductModel" tabindex="-1" role="dialog" aria-labelledby="ProductModelTitle" aria-hidden="true">
  <div class="modal-dialog modal-dialog-centered" role="document">
    <div class="modal-content">
      <div class="modal-header">
        <h5 class="modal-title" id="exampleModalLongTitle">Modal title</h5>
        <button type="button" class="close" data-dismiss="modal" aria-label="Close">
          <span aria-hidden="true">×</span>
        </button>
      </div>
      <div class="modal-body">
        <form>
          <div class="form-group">
              <label for="name">Sku</label>
            <input type="text" class="form-control" id="Sku" name="Sku" aria-describedby="SkuHelp" placeholder="Enter your sku">

            <label for="email">Name</label>
            <input type="text" class="form-control" id="Name" name="Name" aria-describedby="NameHelp" placeholder="Enter product name">

            <label for="email">Manufacturer</label>
            <input type="text" class="form-control" id="Manufacturer" name="Manufacturer" aria-describedby="ManufacturerHelp" placeholder="Enter manufacturer">

            <label for="mobile">Price</label>
            <input type="number" class="form-control" id="Price" name="Price" aria-describedby="PriceHelp" placeholder="Enter your product price">
            <input type="hidden" id="id" name="id" /> <!--Used it for Edit Product only to hold selected product id -->
            </div>
        </form>
      </div>
      <div class="modal-footer">
        <button type="button" class="btn btn-secondary" data-dismiss="modal">Close</button>
        <button type="button" id="btnAdd" class="btn btn-primary">Save changes</button>
      </div>
    </div>
  </div>
</div>

List Products


<table id="ProductTable" class="table table-striped table-bordered table-hover">
    <thead>
        <tr>
            <th>Sku</th>
            <th>Name</th>
            <th>Manufacturer</th>
            <th>Price</th>
            <th></th>
            <th></th>
        </tr>
    </thead>
    <tbody id="tbodyid">
    </tbody>
</table>

Load and Draw Table (Create)

loadProductRecords();

function loadProductRecords()
{
    $.ajax({
        type: "GET",
        url: "/Product/GetProducts",
        dataType: "json",
        success: function (msg) {
            DrawTable(msg);
        }
    });

}

function DrawTable(response)
{
    $("#tbodyid").empty();

    $.each(response, function(i, item) {
        var $tr = $('<tr id="'+item.id+'">').append(
            $('<td>').text(item.sku),
            $('<td>').text(item.name),
            $('<td>').text(item.manufacturer),
            $('<td>').text(item.price),
            $('<td>').html('<button type="button" args="'+ item.id +'" class="btn-edit btn btn-success">Edit</button>'),
            $('<td>').html('<button type="button" args="'+ item.id +'" class="btn-delete btn btn-danger">Delete</button>')
        ).appendTo('#ProductTable');
    });
}

Add and Edit Product (Add and Update)

$("#btnAdd").click(function(){
if ($('#btnAdd').hasClass('btn-update'))
{
    var id = $('#id').val();

    $.ajax({
            type: "POST",
            url: "/Product/Edit",
            data: $('form').serialize(),
            contentType: 'application/x-www-form-urlencoded',
            dataType: "json",
            headers:
            {
                "RequestVerificationToken": $('input:hidden[name="__RequestVerificationToken"]').val()
            },
            success: function (msg) {
                loadProductRecords();
                $("#btnAdd").removeClass('btn-update');
                $('#ProductModel').modal('hide'); //hide the modal
            }
        });

}
else{
        $.ajax({
            type: "POST",
            url: "/Product/Create",
            data: $('form').serialize(),
            contentType: 'application/x-www-form-urlencoded',
            dataType: "json",
            headers:
            {
                "RequestVerificationToken": $('input:hidden[name="__RequestVerificationToken"]').val()
            },
            success: function (msg) {

                loadProductRecords();
                $('#ProductModel').modal('hide'); //hide the modal
            }
        });
    }
});

Read and Delete

$(document).on('click', '.btn-edit', function(){
    var id = $(this).attr('args');
    $.ajax({
        type: "GET",
        url: "/Product/Details",
        data: {"id": id},
        contentType: 'application/x-www-form-urlencoded',
        dataType: "json",
        headers:
        {
            "RequestVerificationToken": $('input:hidden[name="__RequestVerificationToken"]').val()
        },
        success: function (msg) {
            $("#Sku").val(msg.sku);
            $("#Name").val(msg.name);
            $("#Manufacturer").val(msg.manufacturer);
            $("#Price").val(msg.price);
            $("#id").val(msg.id);
            $("#btnAdd").addClass("btn-update"); //add the btn-update class to modal save button so that we can make diferrent between add or update action


            $('#ProductModel').modal('show');
        }
    });
});

$(document).on('click', '.btn-delete', function(){
    var id = $(this).attr('args');
    $.ajax({
        type: "POST",
        url: "/Product/Delete",
        data: {"id": id},
        contentType: 'application/x-www-form-urlencoded',
        dataType: "json",
        headers:
        {
            "RequestVerificationToken": $('input:hidden[name="__RequestVerificationToken"]').val()
        },
        success: function (msg) {
            $('table#ProductTable tr#'+ id).remove();
        }
    });
    });

9. Test the application

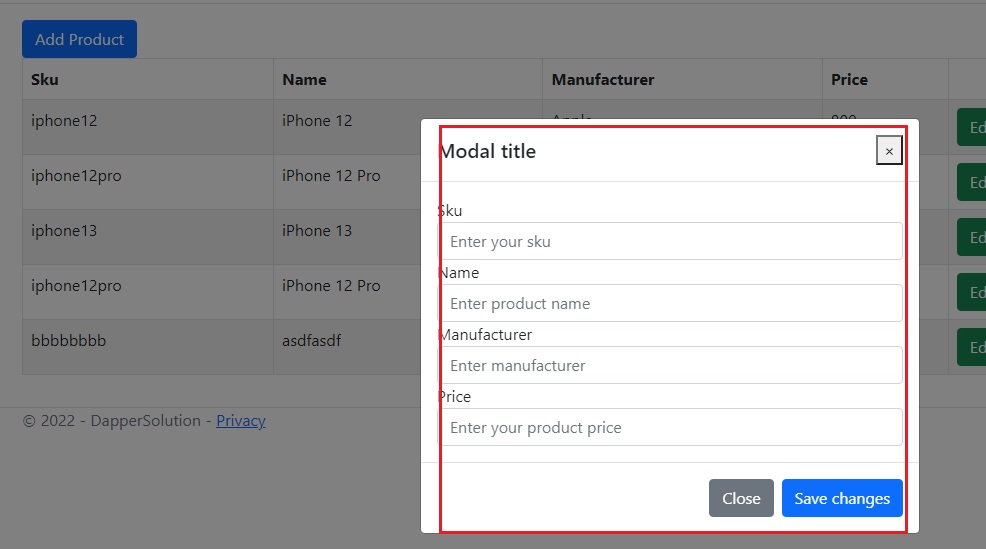

Add a product

test

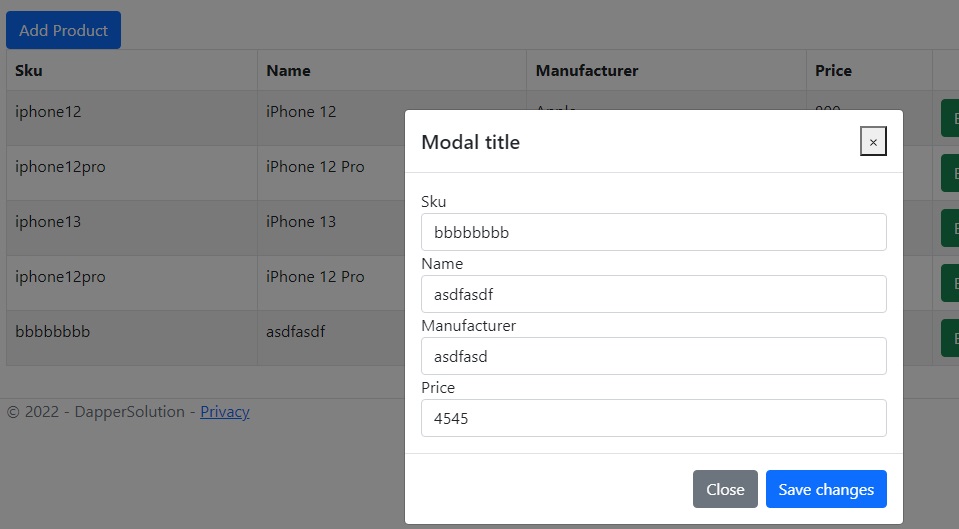

Edit a product

test

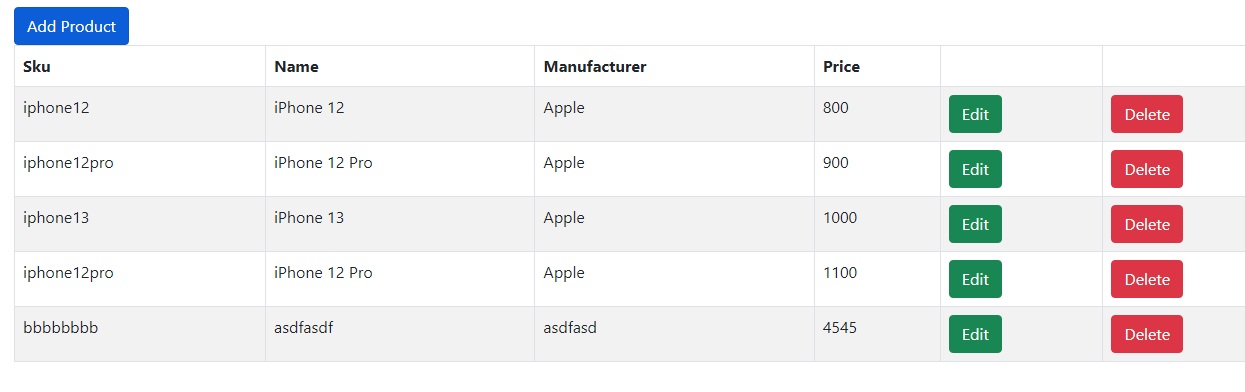

List and delete product

test
